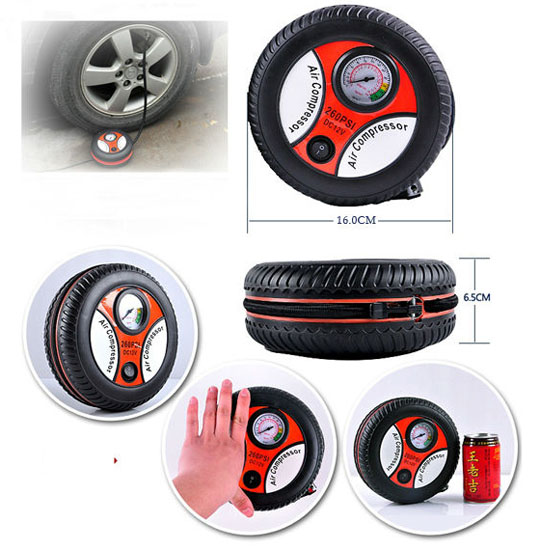

Car Auto Pump

PSI: 260

Voltage: DC12V



This air compressor is powered by cigarette lighter / DC 12V, ideal for inflating tires, balls, rubber floater, hovercraft and so on.



--260PSI, inflates ordinary car tire about 5 minutes(>30PSI).

--Powered by cigarette lighter / DC 12V, once pressed the switch, it will work automatically with low noise.

--Compact and portable, easy to use.

--Provide pressure gauge and 3 nozzle adapters.

--Ideal for inflating tires, balls, rubber floater, hovercraft and so on.



1.PSI: 260

2.Voltage: DC12V

3.Power: 120~150W

4.Material: Metal & plastic

5.Length of power plug: 3m / 9.84ft

6.Length of air tube: 50cm / 19.7in

7.Item diameter: 18cm / 7.1in

8.Item height: 7cm / 2.8in

9.Item weight: 770g / 1.7lb

10.Package size: 19*18.5*9cm / 7.5*7.3*3.6in

11.Package weight: 855g / 1.89lb



The method of use

--Take out cigarette plug, plug directly in the automobile cigar lighter, open air pump switch, wait for pump start-up, will be air hose top gas nozzle directly inserted in the tire valve, hear the air by tire emission of voice, the said air has been circulation, the gas mouth screw up, can air, the air is no longer emission.

--Aeration, meter needle with tyre saturation degree rise, when the pointer to proper tire pressure (general car tire pressure for 223 kpa = 35 psi), remove the plug and mouth, to complete the work.

--Please use this machine equipped with professional ball needle, answer mouth and gas nozzle is linked together, for ball games, and other aerobic equipment for gas.



Note:

1, Please first started the car engine, enhance power, not consumption car battery power.

2, the machine to be used dc (DC12V15A) power, do not use domestic high voltage power supply.

3, inflatable, please in continuous work for 10 minutes for cooling rest, can prolong motor life. Rubber dinghy gas, can work continuously for 30 minutes.

4, general tyre in the air, about 3-6 minutes can reach 220 kpa normal tire pressure. Big tyre will be longer time. Such as start aeration, instrument pointer rapid rise, already said air and no filling into tires, must stop work to operation, otherwise, instrument and the motor will be damaged.

5, when using, people don't leave the body, always pay attention to tire pressure, not too supersaturated.

6, car cigarette lighter if not clean and not conductive, or fuse, the machine will not operate properly, please ensure that cigarette lighter conductive good.

7, this machine should avoid damp, heavy cast and sand mud invasion, avoid the child play with, in order to avoid damage.

8, if use is stop phenomenon, this is cigarette lighter power supply current shortage of sake, we delivery detection current are in more than 12 a.

9, (this is very important) the machine starting current is very big, do not connected to the tire in open power switch, otherwise likely because the start current is too large burn out auto fuse. Proper operation is first open power, wait for pump start-up normal work, then grafted in inflation. If in operation after power off to restart, also ought to gas nozzle unscrewing to boot, otherwise you may not be able to burn out the car fuse.



Usage:

--The machine is suitable for cars, the bicycle tires, and ball games, rubber dinghy, etc. Of the air, wide range of application.

--On the highway, field, or any place, car tire suddenly leak, more can play its emergency function.

--Ready to one, in the car trunk, does not occupy a space, magical function infinite.

--The car tires keep right tire pressure, can save gasoline, protect tires, and ensure traffic safety.



Package includes:

1 * Air Compressor
